A Home Lab Network Design

Proxmox, VLANs, QNAP Switch & pfSense:

In this write-up, I am exploring my home lab setup in depth. The document outlines the VLAN-aware setup used in a Proxmox-based home lab to securely and logically segment different types of traffic using a QNAP-managed switch and pfSense as the core firewall/router.

Proxmox Network Design:

I have configured my Proxmox with a single Linux bridge (vmbr0) using a 10GbE NIC, which is VLAN-aware. This allows for multiple VLANs to be managed without requiring separate physical interfaces.

My /etc/network/interfaces File

auto lo
iface lo inet loopback

auto enp45f0
iface enp45f0 inet manual

auto vmbr0
iface vmbr0 inet static
    address 10.x.x.x/24
    gateway 10.x.x.1
    bridge-ports enp45f0
    bridge-stp off
    bridge-fd 0
    bridge-vlan-aware yes
    bridge-vids 2-4094

Bash

When I create a VM in Proxmox, I assign vmbr0 as the network interface and specify the VLAN ID (e.g., 80 for DMZ). This allows VMs to be placed on isolated subnets without additional bridge interfaces.

QNAP Managed Switch (QSW-M408-4C)

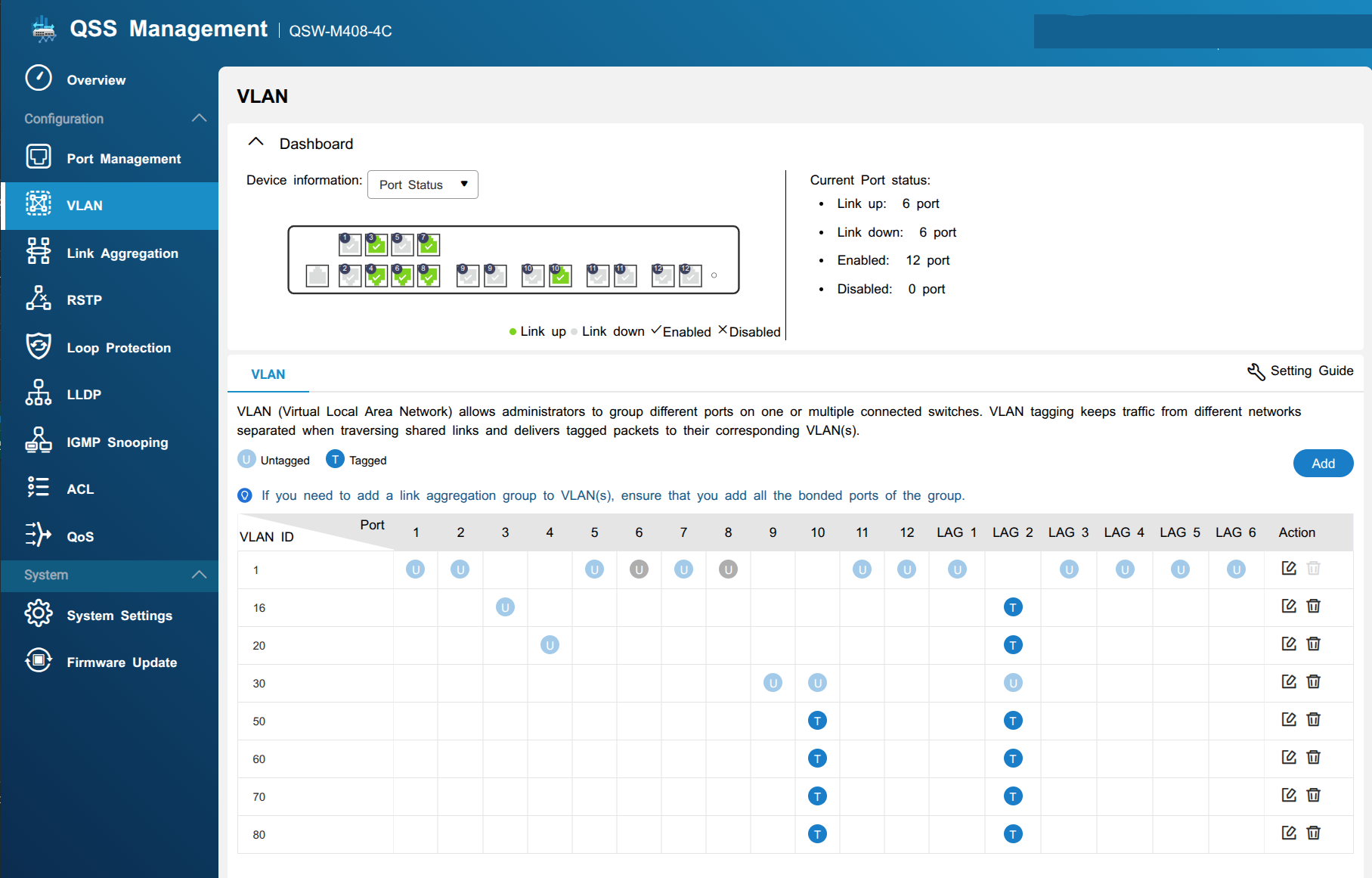

The following VLAN IDs are assigned across relevant ports:

General VLAN

VLAN 30 Example

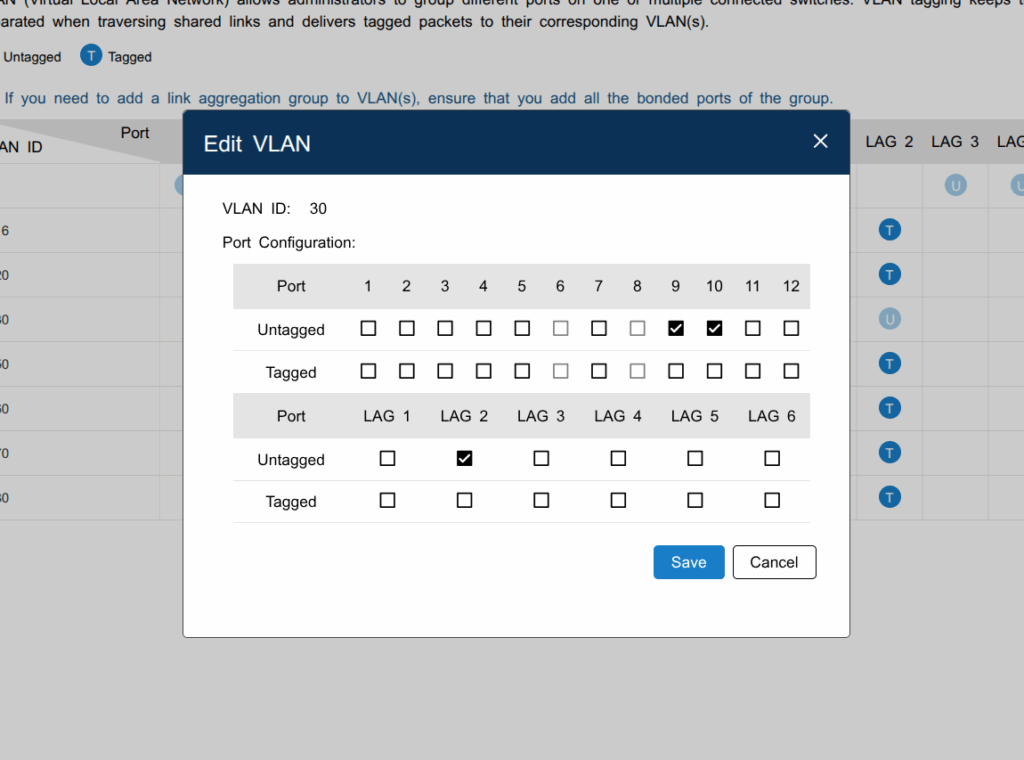

Ports 9 & 10: Untagged (for Proxmox and workstation)
LAG 2: Trunked/tagged for all VLANs (to pfSense)

Link Aggregation

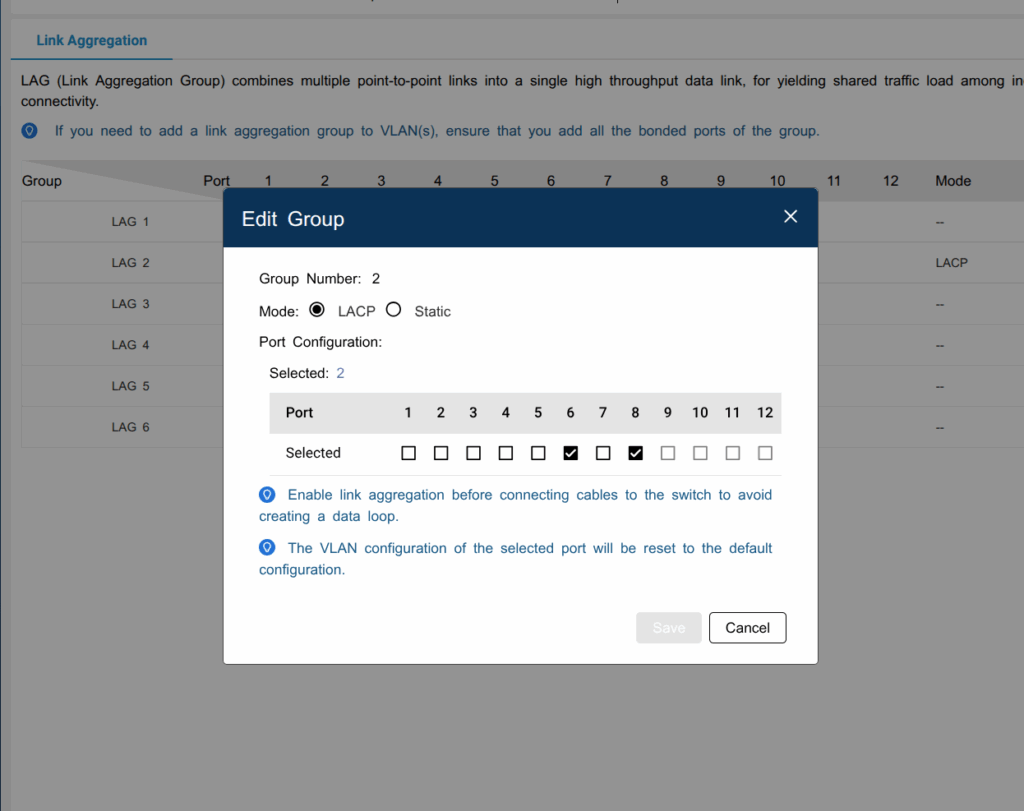

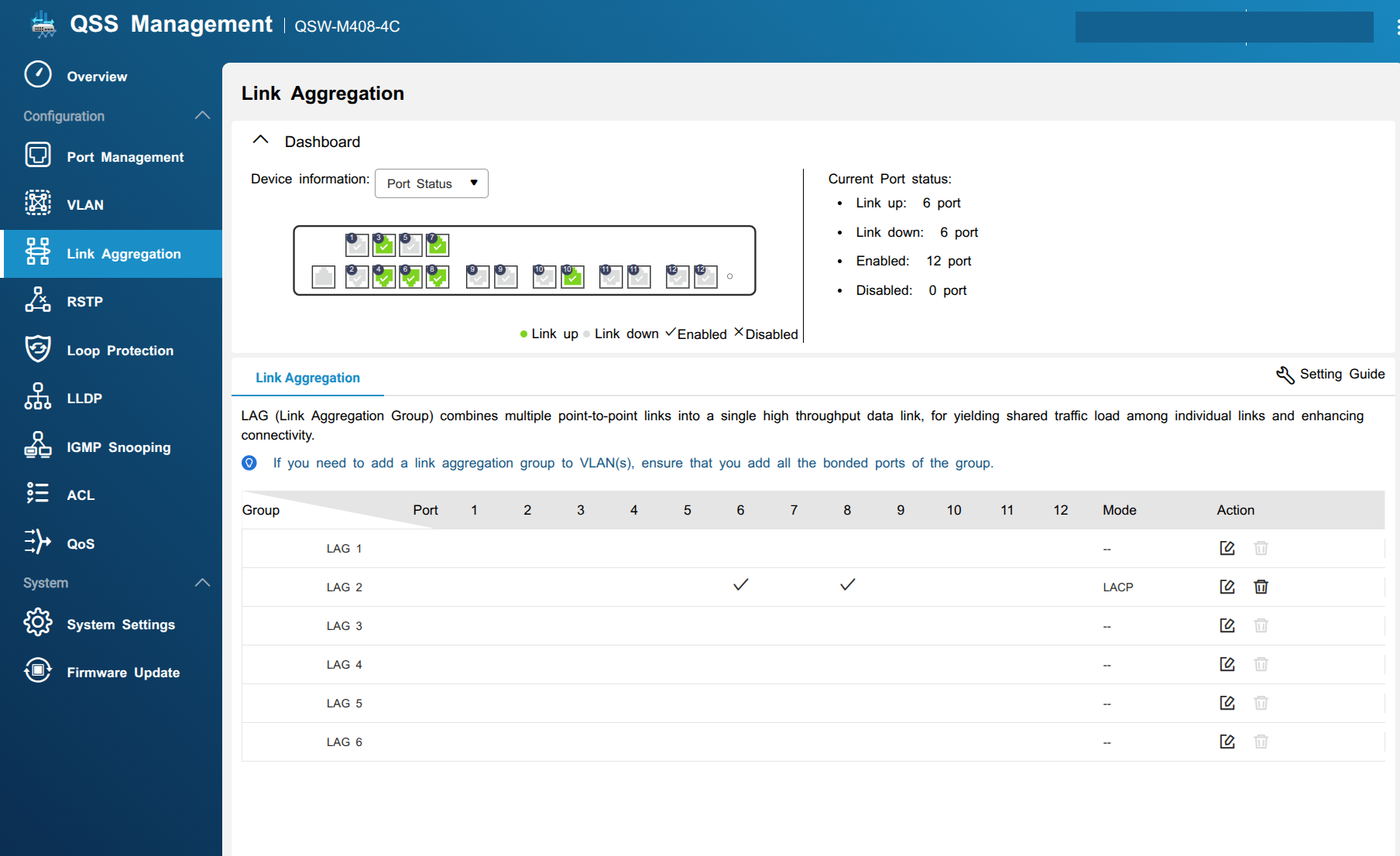

LAG 2 consists of ports 6 and 8 in LACP mode, connected to pfSense.

pfSense VLAN Assignments

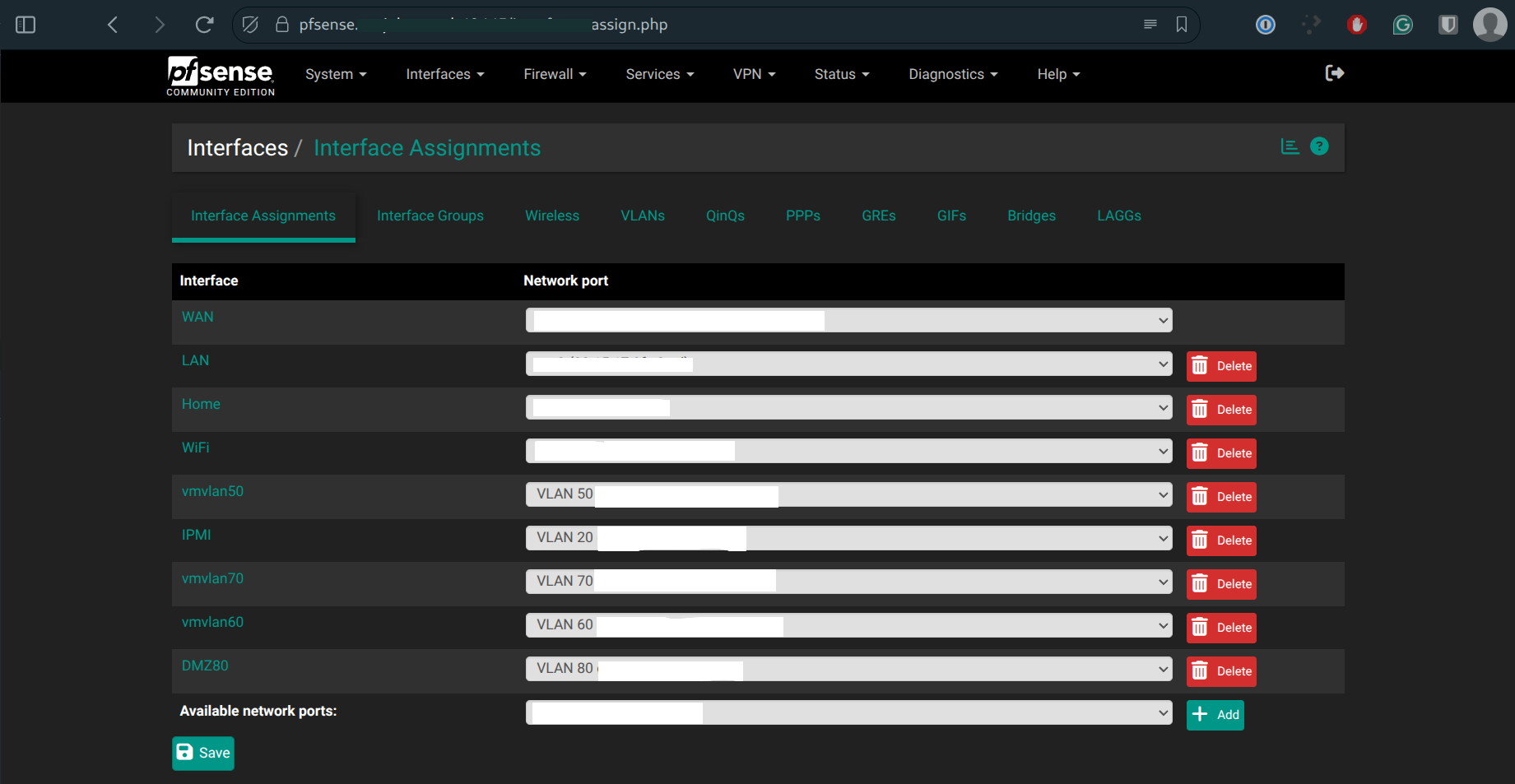

Each VLAN has a corresponding interface in pfSense with firewall rules, DHCP, and routing configured.

Each VLAN is isolated via firewall rules and optionally routed via NAT, depending on the need.

This architecture provides secure, isolated environments for:

Proxmox management
VM workloads (segmented by type/function)
IPMI/BMC traffic
Home and WiFi networks
DMZ/public-facing services

This design uses a VLAN-aware bridge in Proxmox, tagged trunk uplinks to pfSense, and port-based VLAN configurations in a managed switch, enabling a powerful and flexible home lab environment.

One NIC for Proxmox

1. VLAN-Aware Bridge (vmbr0) Handles Multiple Networks

My Proxmox uses a single bridge vmbr0 with bridge-vlan-aware yes.
All VLANs are managed virtually by tagging traffic per VM.
No need for physical separation if the switch and firewall (pfSense) are handling VLAN isolation.

2. Switch Tagging + pfSense Routing = Full Control

My QNAP switch tags traffic correctly.
pfSense routes and isolates VLANs via firewall rules.
So one NIC handles many networks securely.

3. 10GbE Bandwidth Is Plenty

10GbE has more than enough throughput for multiple VMs, backups, etc.
I want to avoid complexity and cabling clutter while gaining performance.

Best Practices for Single-NIC Setups

Topic	Recommendation
VLAN Tagging	Use per-VM VLAN IDs via `vmbr0`
Uplink to Switch	Tagged trunk port (like my LAG setup)
pfSense VLAN Interfaces	One per VLAN, each with its own rules/DHCP
Backups or Storage	One per VLAN, each with its rules/DHCP

Sanju Mathew
